Description

The tool enables searching for a component or a group of components within a project. As a result the found components are marked in all active windows, such as: 2D Editor, 3D Ansicht, Datentabelle, Ergebnisse, etc.

Location in the program

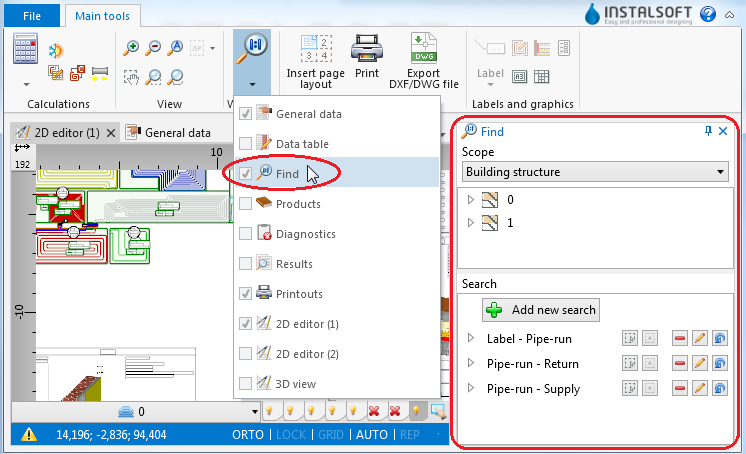

  • The function forms a separate window and is available in the Hauptwerkzeuge toolbar in the Fenster section.
    1. function

Example of use

Searching for components of selected type

  1. Select Umfang of search (e.g. Gebäudestruktur, Heiz- und Kühlinstallation).
  2. Select the component in the tree of components.
  3. Additional buttons on the right side of window enable:
    • searching for components of selected type within a drawing indicated by the user,
    • searching for all components of selected type.

Searching for components that meet defined criteria

  1. Select one of the previously defined searches
    or
  2. Select Neue Suche hinzufügen.
  3. Fill in the Suche nach Kategorien field.
  4. Select the scope of search in the Suchen field.
  5. Select from the list the data type to be used in the search.
  6. Narrow down the range of your search by specifying the values of selected data.
