Product InstalSystem 5
Type of article FUNCTIONALITY
Content up-to-date for version IS 5.0 Beta 22


Description

Editing of pipe feeds may be automated to a high degree. Die Route der Anbindeleitungen is a component inserted by the user into the project to connect Heizen/Kühl Zone type components with component Doppelverteiler. Based on the arrangement and settings of Die Route der Anbindeleitungen components, when performing calculations the program automatically generates a set of components of the Anschlussleitung type, taking into account the number of connected Heizkreis components. That number is the result of dividing Heizen/Kühl Zone into loops, which may be either done automatically or specified by the user. Anschlussleitung may also be edited manually.

Location in the program

  • Die Route der Anbindeleitungen is available in section on the Hauptwerkzeuge toolbar, for the active editing scopes Fußboden/Wand or Decken.

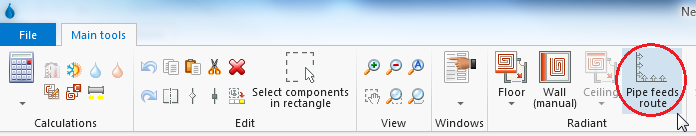

1. Die Route der Anbindeleitungen


  • Component Anschlussleitung enables manual arrangement. Anschlussleitung is available in section on the Hauptwerkzeuge toolbar, for the active editing scopes Fußboden/Wand or Decken.

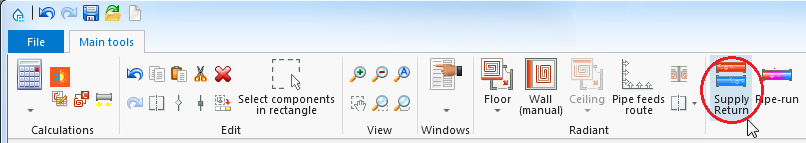

2. Manual placing of Anschlussleitung


  • Die Route der Anbindeleitungen can be switched between automatic and manual mode by right clicking the mouse and selecting the desired mode.

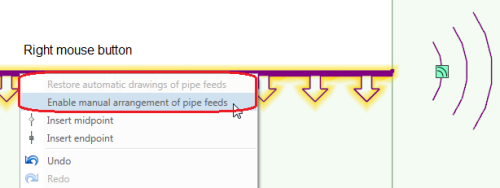

3. Switching Die Route der Anbindeleitungen into active/inactive mode


Example of use


Additional information

Important properties of Die Route der Anbindeleitungen:

  • Anschlussleitung laying direction in relation to Die Route der Anbindeleitungen can be determined by altering the arrangement of arrows.
  • VA Bestimmung of Anschlussleitung generated by means of Die Route der Anbindeleitungen can be determined automatically or specified by the user (appropriate field in the Datentabelle window).
  • Bandbreite of pipe feed laying specified by the user changes the value of Verlegeabstand after calculations are made, so that all components of the Anschlussleitung type are arranged within the defined band.
  • Number of generated components of the Anschlussleitung type is automatically adapted to the number of connected Heizkreis components.
