Auslegung einer Boden- und Wandheizung in einem Einfamilienhaus

Project description

Example illustrates radiant heating installation with wall and underfloor heating systems located in 2-storey building with no basement.

Project files How to calculate downloaded file?	Installation with underfloor and wall radiant heating system in single family building, isproj
Designed with	InstalSystem 5 Rev. GOLD 23.2
Required modules	Basismodul Flächenheiz-und Kühlsysteme Heizung
Project range	Radiant heating
Used catalogues	Basic radiant systems Brass and steel pipe couplings and fittings Copper pipes and fittings EN 1057 Miscellaneous fittings of any make Standard insulation catalogue Neutral valves catalogue-typical construction
Type of building	single-family building with no basement 2-storey
Building structure	Base ground floor, dwg Base first floor, dwg
Drawings range	Plan view
Prepared by	www.instalsoft.com
Legal disclaimer	The whole file or parts of the project may be copied
Calculation results	Full printout, xls Full printout, pdf General heating results, pdf Bill components, pdf Installation parameters, pdf

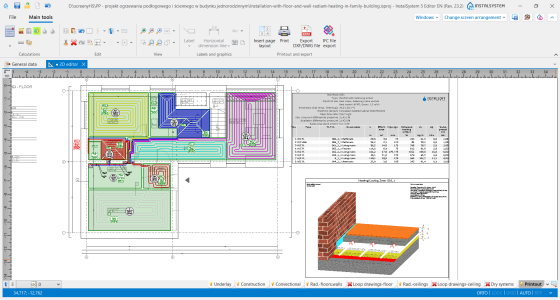

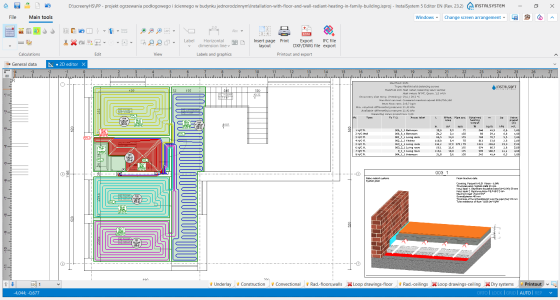

Drawing results	Ground floor, dwg First floor, dwg Ground floor, pdf First floor, pdf
